First Line of Code: Android (2nd Edition)

Android System Architecture

• Linux Kernel Layer
• System Runtime Library Layer
• Application Framework Layer
• Application Layer

The four main components of Android: Activity, Service, Broadcast Receiver, and Content Provider.

Project Structure#

java folder: Project code

res folder: Project images, layouts, strings, and other resources.

• Drawable folder: Used to store various types of graphic resources, including but not limited to PNG, JPEG, GIF images, XML-defined drawable resources (such as shapes, selectors, etc.), and nine-patch images. These resources can be used as backgrounds, icons, dividers, etc.

• Mipmap folder: Mainly used to store application launcher icons. Using the mipmap folder helps ensure that the application icon displays optimally on devices with different resolutions and screen densities.

• Layout folder: Page layout files

build.gradle app module's gradle build script

AndroidManifest.xml Project configuration file, where all four main components must be registered.

Activity#

• Set Main Activity: Add intent-filter tag and other declarations in the activity tag.
• Add Menu: Build menu resource files and reference them in the activity.

Intent#

Use Intent for activity transitions, starting services, sending broadcasts, etc.

• Explicit Intent: Clearly specifies the activity to start,
  • Pass parameters when starting an activity: putExtra -> getStringExtra.
  • Return data to the previous activity: startActivityForResult to start a new activity, use onActivityResult to receive parameters returned when the new activity is destroyed.
• Implicit Intent: By setting the action and category that the current activity responds to in the activity, it can also start activities from other programs (supporting web pages, phone calls, etc., depending on the protocol and passing parameters).

Each Intent can only specify one action but can specify multiple categories.

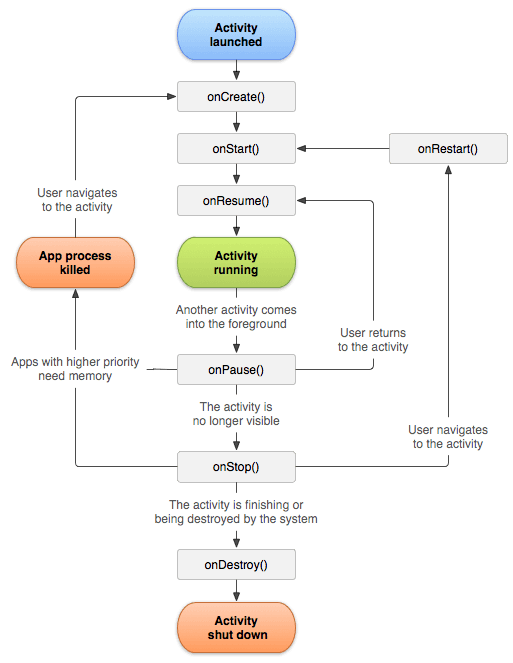

Lifecycle#

Based on the visibility of the activity and whether it is at the top of the stack, the four states of the activity lifecycle are: Running, Paused, Stopped, and Destroyed.

OnSaveInstance: Called before the activity is reclaimed, allowing temporary data to be retained.

• Activity launch modes: standard, singleTop, singleTask, singleInstance.

Page Controls and Layouts#

• Control visibility: visible, invisible, gone
• Layouts

LinearLayout: Arranges in a linear direction (horizontal, vertical).

RelativeLayout: Relative positioning allows controls to appear anywhere (relative to the parent layout, relative to the page).

FrameLayout: All controls are defaulted to the top left corner.

PercentFrameLayout and PercentRelativeLayout

Custom Layout: After defining, include it through include;

• Control inheritance structure

• Custom controls: Create logic for custom layouts for reuse, dynamically load layout files through inflate.

Fragment#

• UI fragments that can be embedded in activities, each fragment has its corresponding layout file and code file.
• An activity can include multiple fragments, switching fragments through FrameLayout.
• Obtain activity implementation in fragments, communication between fragments and activities, and between fragments.

Fragment Lifecycle#

Dynamic Layout Loading#

For example: Use different layouts based on device type (tablet, phone).

• Use qualifiers to correspond to different folder names (can use qualifiers to distinguish size, resolution, orientation).

Broadcast Mechanism#

Can communicate across processes.

• Standard Broadcast: Asynchronous, received simultaneously, cannot be interrupted.
• Ordered Broadcast: Synchronously executed, only one can be received at the same time.

Broadcast Types

• Dynamic Registration: Registered in code, needs to be closed promptly after use.
• Static Registration: Registered in AndroidManifest.

For system broadcast reception, some require permission declaration.

Sending Broadcasts

• Standard Broadcast: Custom intent + sendBroadcast method.
• Ordered Broadcast: Custom intent + sendOrderedBroadcast method.

Local Broadcast

Use LocalBroadcast to broadcast locally, using its corresponding sending and receiving methods.

Data Persistence Techniques#

Three data persistence methods in Android.

• Files
• SharedPreferences
• Database

Files#

• Stored in the files folder under the application directory.
• File stream writing (openFileOutput, openFileInput).

SharedPreferences#

Store data using key-value pairs, data is stored in package name/shared_prefs/ in XML format.

Storing Data#

• Obtain sharedPreferences object, use edit() method to get Editor object.
• Store and retrieve data objects.
• Use apply method to save.

Reading Data#

• Use get method to get the corresponding value based on the key.

SQLite#

The book mentions using Android API, SQL statements, and LitePal methods for database operations, and you can also use Greendao. For comparison, refer to the article below.

Comparison, Integration, and Detailed Use of Database Frameworks GreenDao and LitePal in Android, Performance Comparison of Greendao and Native SQLite

Content Provider#

Mainly used to achieve data sharing functionality between different applications.

For example, a phonebook program sharing contacts.

Permissions#

Runtime permissions: Authorization for a certain permission during software use.

During development:

• Check if the user has authorized checkSelfPermission.
• If authorized, continue running; otherwise, request authorization requestPermission.

Accessing Data from Other Programs#

• Obtain instance through getContentResolver.
• Read data.

Creating a Content Provider#

Create a class that extends ContentProvider and override the following methods:

• onCreate: Initialization call.
• query: Query, determine which table to query based on the uri parameter.
• insert: Insert.
• update: Update existing data.
• delete: Delete.
• getType: Get the corresponding MIME type for the uri.

Mobile Multimedia#

Notifications#

• Obtain notification instance NotificationManager.
• Create notification object, add Intent to execute notification click action.
• Send.

Camera, Audio, and Video#

Network#

• Use webView to display web pages.
• Use HTTP to access HttpURLConnection, OKHttp.

Through OKHttp, you can perform GET, POST, and other requests.

• XML Parsing: Pull parsing, SAX parsing.
• JSON Parsing: JSONObject, GSON.

Services#

• Solutions for running programs in the background in Android.
• When the application process is killed, all services dependent on that process will also stop.

Android Multithreading Programming#

Inherit the Thread class.

Implement the Runnable interface.

Write anonymous classes.

Updating UI in Subthreads#

Android does not allow UI updates in subthreads.

Use asynchronous message handling mechanisms to achieve control updates.

Components of asynchronous message handling:

• Message: Messages passed between threads.
• Handler: Sending and processing messages.
• MessageQueue: Message queue that holds all messages from Handlers, only one per thread.
• Looper: Manages the message queue in the thread.

Using AsyncTask:

• onPreExecute is called before execution.
• doInBackground runs in the subthread.
• onProgressUpdate responds to publishProgress in the background to update UI.
• onPostExecute is the operation after the task is completed.

Services#

• Defined and started or stopped through Intent (startService, stopService).
• There is only one instance of the service, but each time startService is called, onStartCommand will execute once.

Foreground Service: Add notification to the service (display in the notification bar) and call startForeground.

IntentService: Asynchronous, automatically stops.

Communication Between Activities and Services#

• Build a Binder object, use onBind method in Service.
• Call Binder methods in the activity.

Location-Based Services#

• Apply for API Key and download SDK.
• Permission declaration.
• Obtain location information including: latitude, longitude, address, map.

Material Design#

• ToolBar.
• Sliding Menu: The first sub-control displays the main page content, the second displays Easter egg content.
• NavigationView can customize the top and menu layout in the sliding menu.
• FloatingActionButton: Floating button.
• SnackBar: Provides prompts and adds actionable buttons.
• CoordinatorLayout: Listens to events from all sub-controls and responds appropriately.
• CardView: Card layout.
• SwipeRefreshLayout: Pull-to-refresh.

Advanced Development#

• Custom Application class to globally obtain Context.
• Implement Serializable (serialization) or Parcelable (decomposing complete objects) interfaces to pass objects through Intent.
• Custom logging tools.
• Create scheduled tasks: Alarm settings implementation.
